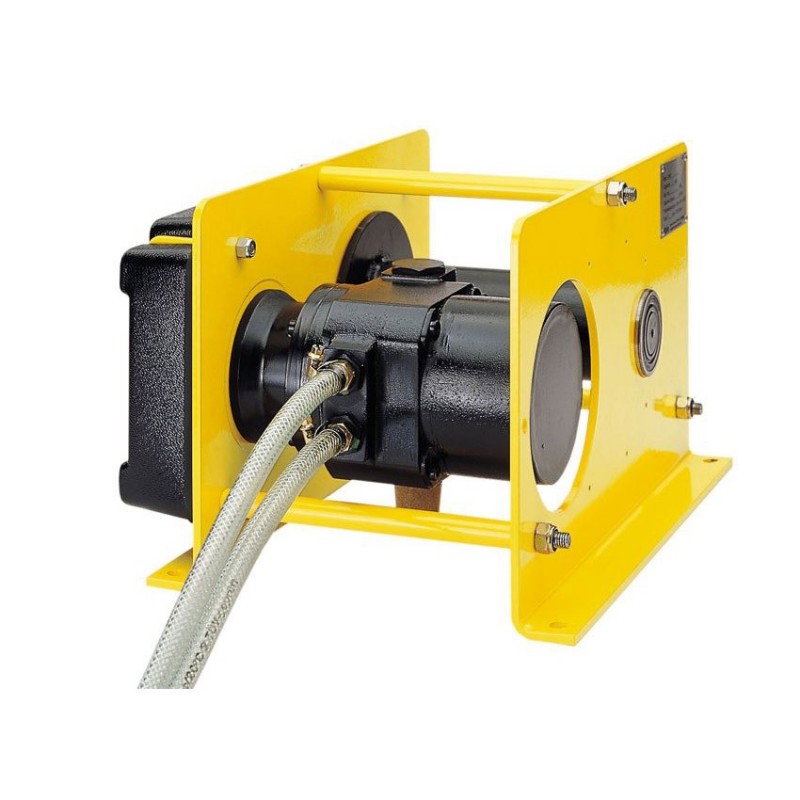

YALE RPA Pneumatic winch
Pulling force 250 - 500 kg
The conception is in accordance with the design of the model RPE. With 100% duty rating and an unlimited number of starts the model RPA is suitable for heavy duty applications. It is insusceptible to contamination, humidity and aggressive mediums from the outside.
Price:
on demand
More info
The conception is in accordance with the design of the model RPE. With 100% duty rating and an unlimited number of starts the model RPA is suitable for heavy duty applications. It is insusceptible to contamination, humidity and aggressive mediums from the outside.
Features
- Robust rotating piston motor with high starting torque, designed for operating pressures 4 to 6 bar.
- Spring pressure disc brake incorporated in the motor holds the load secure even in the event of an air failure.
- Sensitive control by means of direct acting valves in the control switch.
Options
- Different drum designs, e.g. extended to accommodate longer rope, machined grooves for exact reeling, with separation web and 2nd rope outlet for working with two ropes.
- Control including 2.5 m hose and air coupler.
- Maintenance unit for main air supply pipe (pressure regulator, manometer, lubricator and support).
Product combinations
| Model | Capacity WLL in kg | Lifting speed main lift m/min | Rope diameter in mm |
|---|---|---|---|
| RPA 2-13 | 500 | 12,5 | 4 |
| RPA 5-6 | 500 | 6,2 | 6 |
