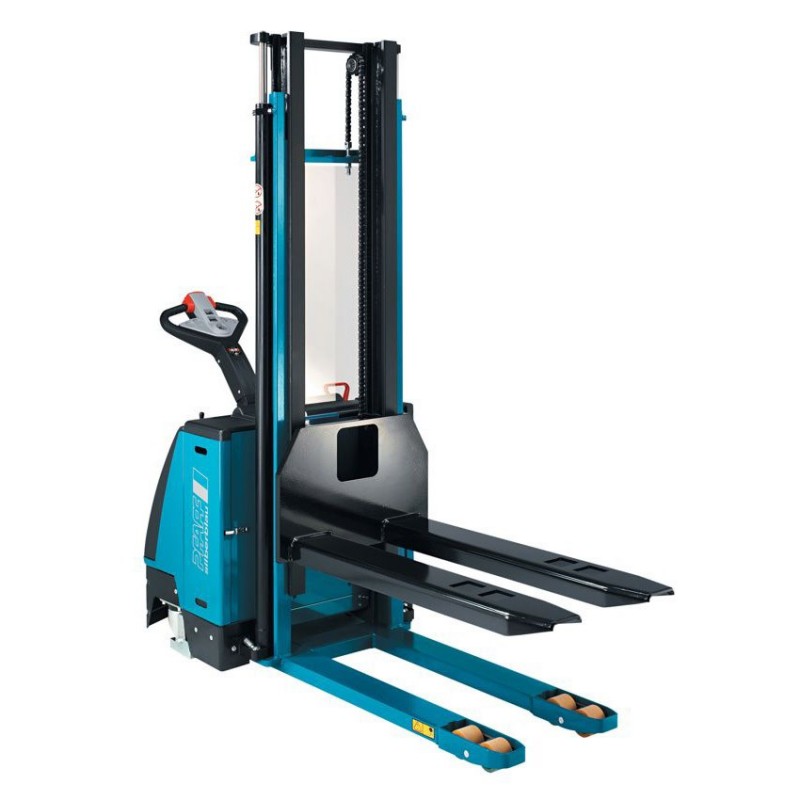

EGV PSH Electric pedestrian stacker PFAFF silberblau
Capacity 1 200 - 1 600 kg, fork height max. 5 000 mm
Ideal for stacking and transportation of palletised loads within a warehouse environment for long haul and high work load applications.
Price:
on demand
More info
Ideal for stacking and transportation of palletised loads within a warehouse environment for long haul and high work load applications.
Features
- Multifunctional control handle for easy handling. The electric pallet lift truck will automatically be slowed down if the control handle is no longer in the users hand.
- Reliable impulse control for stepless regulation of drive speed.
- Compact electric-hydraulic lifting device and overload protection.
- Finely metered lowering of load through pressure relief valve and adjustable lowering valve.
- Mast welded from precision profiles, fork carriage with maintenance free guide rollers.
- Solid frame with one drive wheel and two load and two guide rollers.
- Battery size depends on the type of application.
Options
- Drivers platform
Product combinations
| Model | Capacity WLL in kg | Scroll wheel, mm | Supporting wheels, mm | Fork width, mm | Fork length, mm | Overall width Fork, mm | Fork height max., m |
|---|---|---|---|---|---|---|---|
| EGV PSH 1445 | 1 200 | 250x101 + 125x50 | 82x70 | 170 | 1 150 | 560 | 4 500 |
| EGV PSH 1235 | 1 200 | 250x76 + 125x50 | 82x70 | 170 | 1 150 | 560 | 3 500 |
| EGV PSH 1229 | 1 200 | 250x76 + 125x50 | 82x70 | 170 | 1 150 | 560 | 2 900 |
| EGV PSH 1225 | 1 200 | 250x76 + 125x50 | 82x70 | 170 | 1 150 | 560 | 2 500 |
| EGV PSH 1450 | 1 400 | 250x101 + 125x50 | 82x70 | 170 | 1 150 | 560 | 4 500 |
| EGV PSH 1635 | 1 600 | 250x101 + 125x50 | 82x70 | 170 | 1 150 | 560 | 3 500 |
| EGV PSH 1629 | 1 600 | 250x101 + 125x50 | 82x70 | 170 | 1 150 | 560 | 2 900 |
| EGV PSH 1625 | 1 600 | 250x101 + 125x50 | 82x70 | 170 | 1 150 | 560 | 2 500 |
| EGV PSH 1616 | 1 600 | 250x101 + 125x50 | 82x70 | 170 | 1 150 | 560 | 1 600 |
