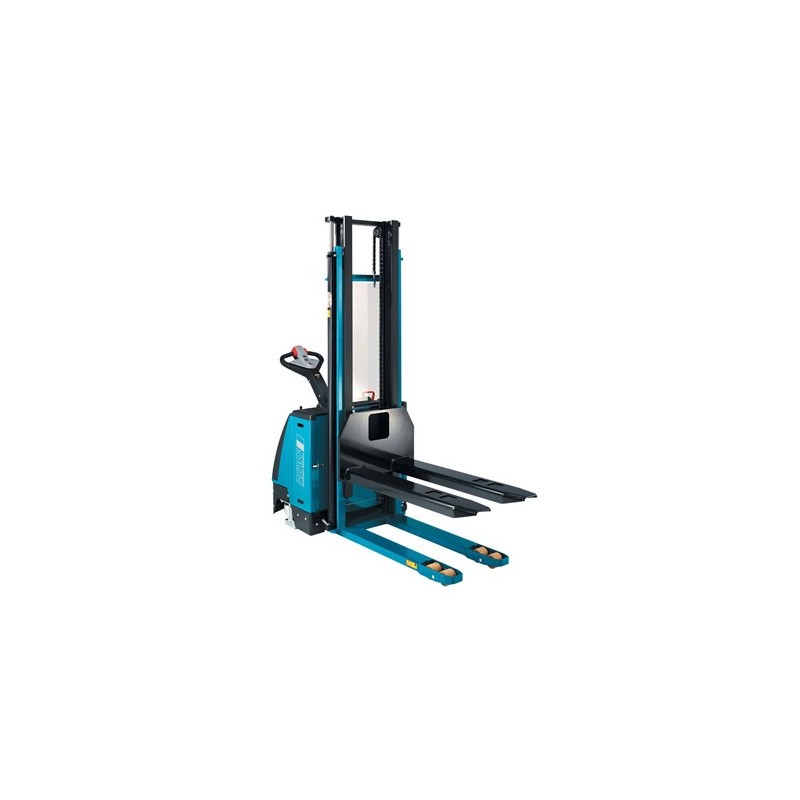

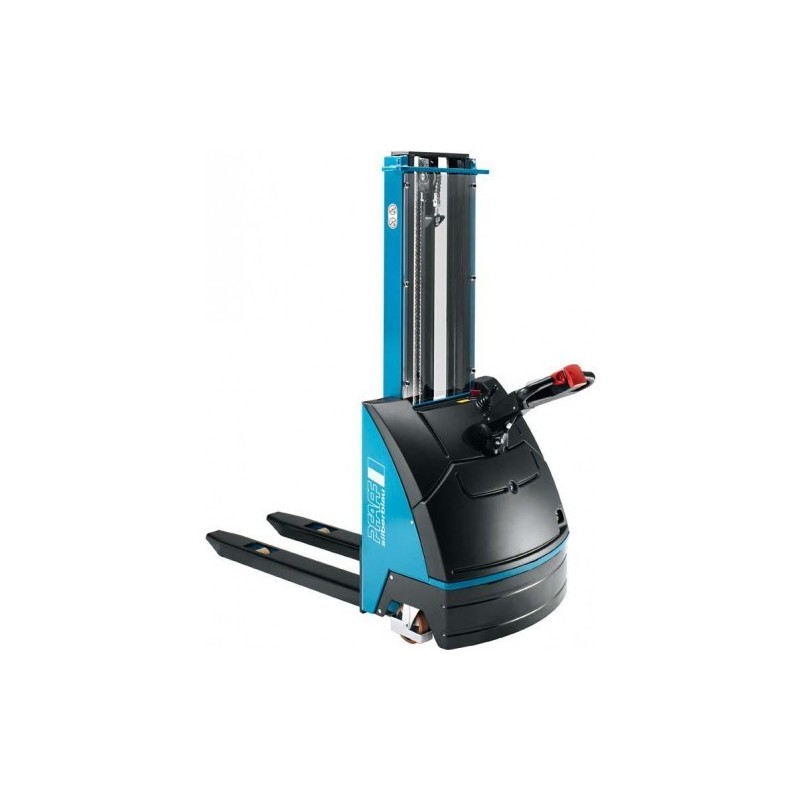

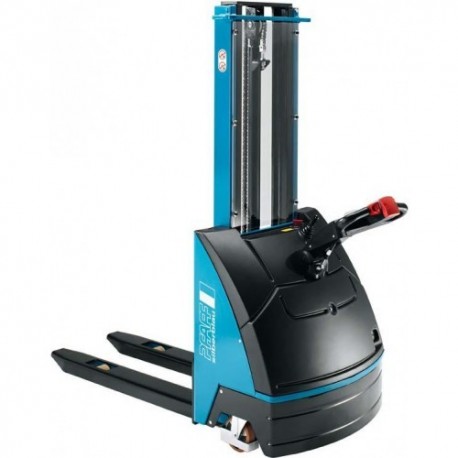

EGV PSL Electric pedestrian stacker PFAFF silberblau
Capacity 1 000 - 1 200 kg, fork height max. 3 500 mm
Ideal for stacking and transportation of palletised goods within a warehouse environment for short haul and medium work load applications.
Price:
on demand
More info
Ideal for stacking and transportation of palletised goods within a warehouse environment for short haul and medium work load applications.
Features
- Multifunctional control handle for easy handling. The electric pallet lift truck will automatically be slowed down if the control handle is no longer in the users hand.
- Reliable impulse control for stepless regulation of drive speed.
- Compact electric-hydraulic lifting device and overload protection.
- Finely metered lowering of load through pressure relief valve and adjustable lowering valve.
- Mast welded from precision profiles, fork carriage with maintenance free guide rollers.
- Solid frame with one drive wheel and two load and two guide rollers.
Scope of delivery
- Battery and battery charger included.
Product combinations
| Model | Capacity WLL in kg | Scroll wheel, mm | Supporting wheels, mm | Fork width, mm | Fork length, mm | Fork height max., m |
|---|---|---|---|---|---|---|
| EGV PSL 1016 | 1 000 | 240x60 + 150x40 | 82x70 | 150 | 1 150 | 1 600 |
| EGV PLS 1020 | 1 000 | 240x60 + 150x40 | 82x70 | 150 | 1 150 | 2 000 |
| EGV PSL 1225 | 1 200 | 250x76 + 150x40 | 82x70 | 150 | 1 150 | 2 500 |
| EGV PSL 1229 | 1 200 | 250x76 + 150x40 | 82x70 | 150 | 1 150 | 2 900 |
| EGV PSL 1235 | 1 200 | 250x76 + 150x40 | 82x70 | 150 | 1 150 | 3 500 |
