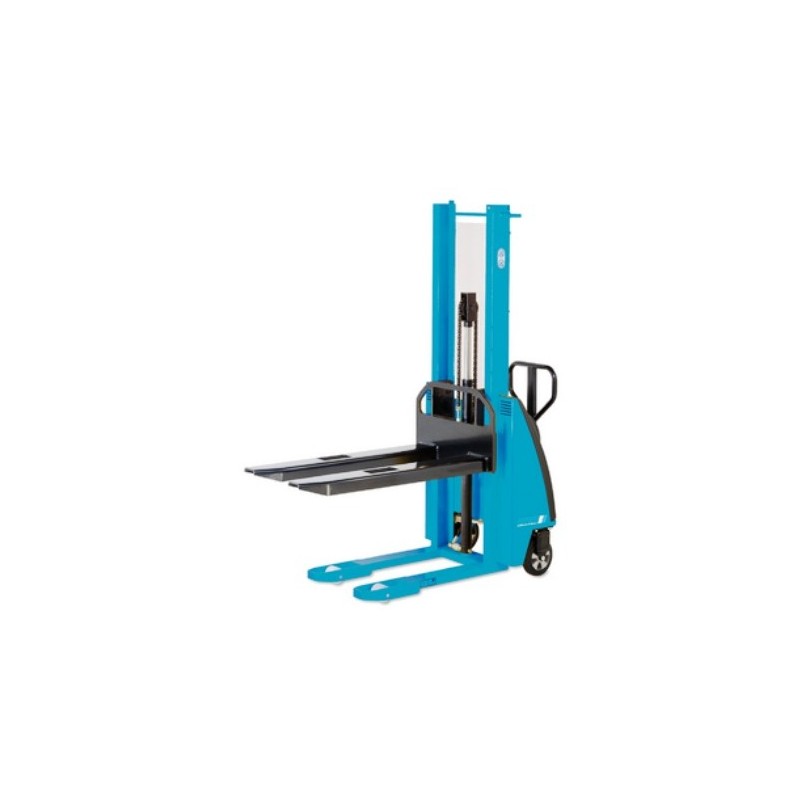

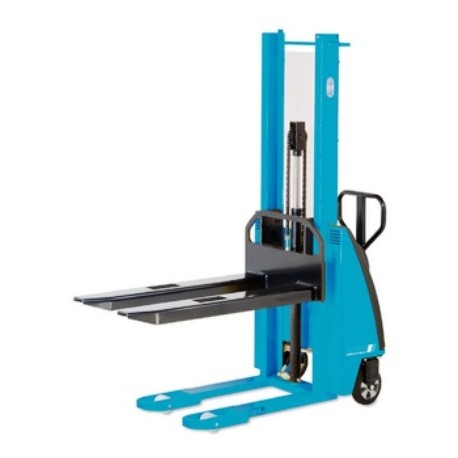

EHH PS Manual drive stacker with electric-hydraulic lift PFAFF silberblau
Capacity 1 000 - 1 200 kg, fork height max. 3 500 mm
Suitable for occasional to medium applications of stacking and transporting palletised loads, also in confined areas.
Price:
on demand
More info
Suitable for occasional to medium applications of stacking and transporting palletised loads, also in confined areas.
Features
- Easy to operate via tie-rod guides to both steer wheels.
- Compact electric-hydraulic lifting device and overload protection.
- Finely metered lowering of load through pressure relief valve and adjustable lowering valve.
- Mast welded from precision profiles, fork carriage with maintenance free guide rollers.
- Retention by parking brake.
- Robust frame with two load and two steer rollers.
Scope of delivery
- Battery and battery charger included.
Product combinations
| Model | Capacity WLL in kg | Scroll wheel, mm | Supporting wheels, mm | Fork width, mm | Fork length, mm | Overall width Fork, mm | Lifting height max. mm |
|---|---|---|---|---|---|---|---|
| EHH PS 1020 | 1 000 | 200x50 | 82x70 | 150 | 1 150 | 560 | 2 000 |
| EHH PS 1009 | 1 000 | 200x50 | 82x70 | 150 | 1 150 | 560 | 900 |
| EHH PS 1016 | 1 000 | 200x50 | 82x70 | 150 | 1 150 | 560 | 1 600 |
| EHH PS 1035 | 1 000 | 200x50 | 82x70 | 150 | 1 150 | 560 | 3 500 |
| EHH PS 1229 | 1 000 | 200x50 | 82x70 | 150 | 1 150 | 560 | 2 900 |
| EHH PS 1225 | 1 000 | 200x50 | 82x70 | 150 | 1 150 | 560 | 2 500 |
