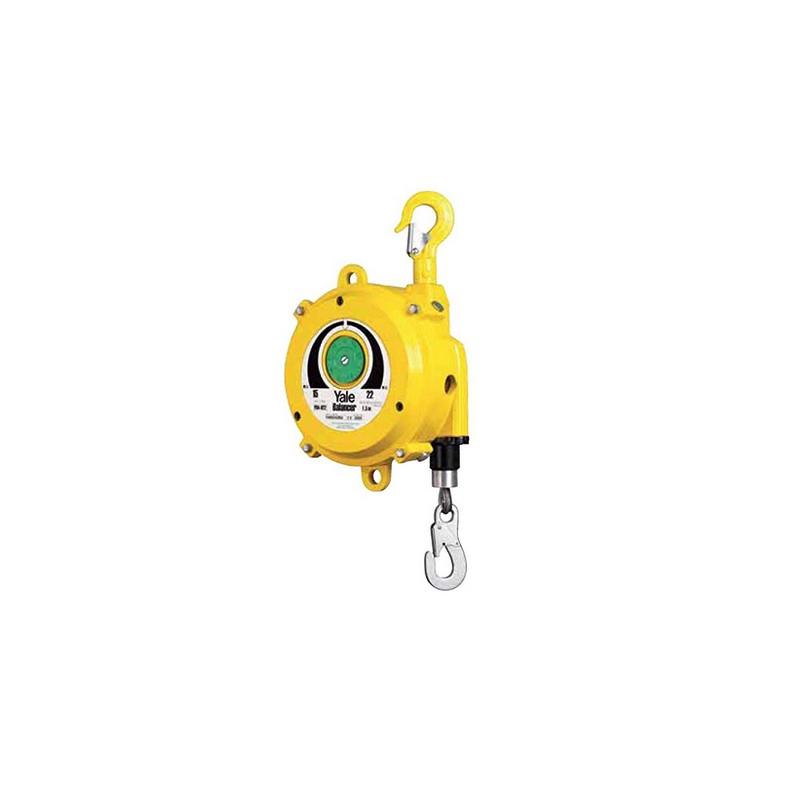

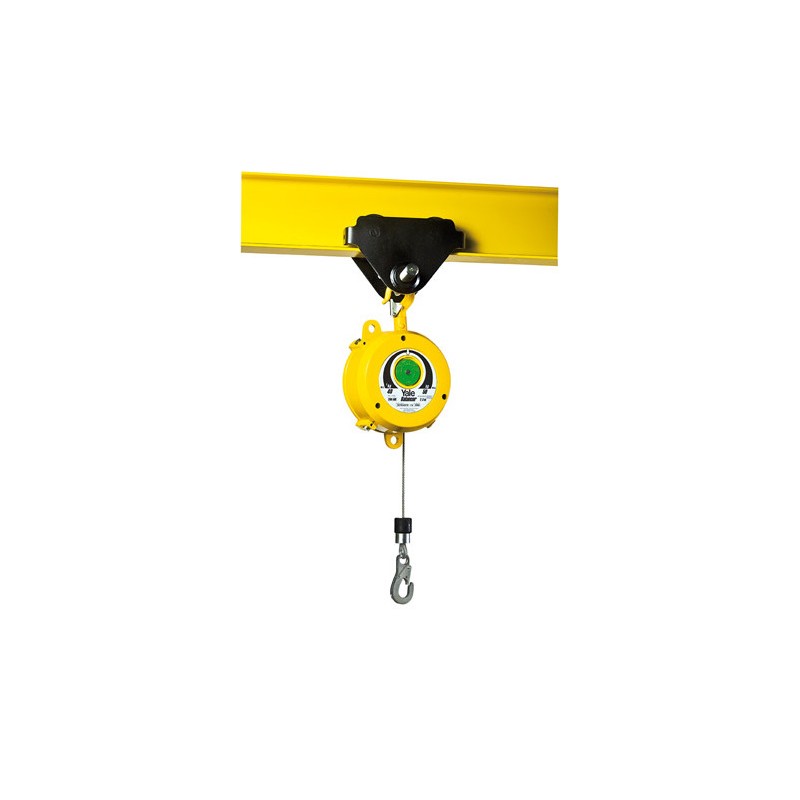

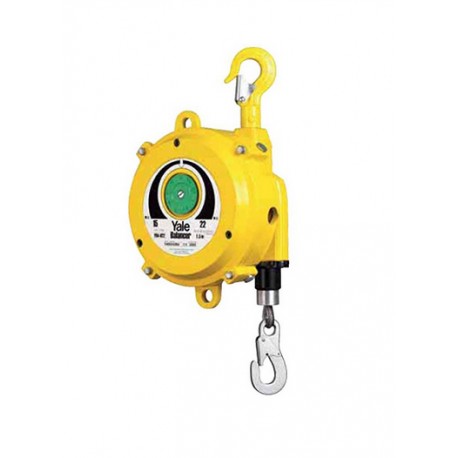

YALE YBA / YBA-L Balancers
Model YBA - Capacity 9 - 70 kg / Model YBA-L - Capacity 9 - 70 kg
YBA / YBA-L series spring balancers have the same technical features as the YBF series, but are equipped with an additional safety feature in case of rope breakage.
Price:
on demand
More info
Model YBA - Capacity 9 - 70 kg / Model YBA-L - Capacity 9 - 70 kg
YBA / YBA-L series spring balancers have the same technical features as the YBF series, but are equipped with an additional safety feature in case of rope breakage.
- This mechanism automatically locks the rope in case of accidental dislodging of the suspended weight, breakage of the bottom hook or the rope. Whipping of the rope and potential injuries to the operator or other personnel in the area is avoided.
- This series is used primarily in areas in which higher safety standards are applied or adverse conditions are common (flying sparks etc.) which might cause damages to the rope.
- This series is available with standard and extended rope length.
Product combinations
| Model | Capacity WLL in kg | Working range, m |
|---|---|---|
| YBA-15 | 15 | 1,3 |
| YBA-15L | 15 | 2,3 |
| YBA-22L | 22 | 2,3 |
| YBA-22 | 22 | 1,5 |
| YBA-30L | 30 | 2,3 |
| YBA-30 | 30 | 1,5 |
| YBA-40 | 40 | 1,5 |
| YBA-40L | 40 | 2,3 |
| YBA-50L | 50 | 2,3 |
| YBA-50 | 50 | 1,5 |
| YBA-60L | 60 | 2,3 |
| YBA-60 | 60 | 1,5 |
| YBA-70L | 70 | 2,3 |
| YBA-70 | 70 | 1,5 |
