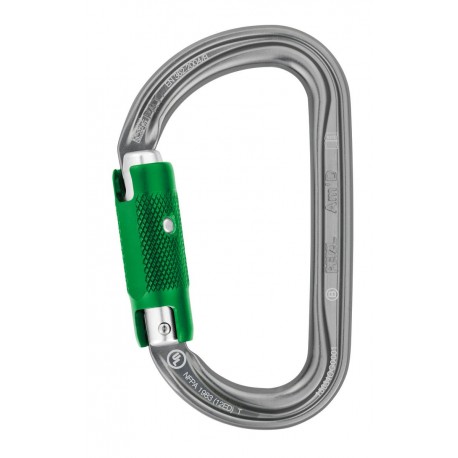

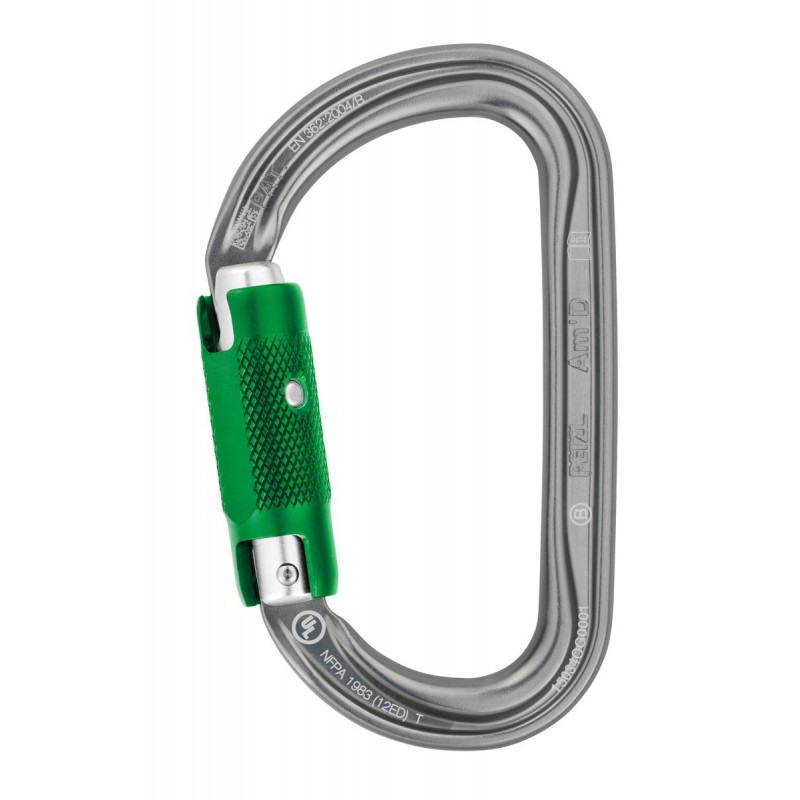

PETZL Am’D PIN-LOCK Asymmetrical aluminum carabiner
The Am'D PIN-LOCK asymmetrical aluminum carabiner is designed for use with groups. It secures the connection of the user thanks to its PIN-LOCK system, which can only be opened by the operator with a specific unlocking tool.
Price:
on demand
Data sheet
| Info | CE EN 362, EAC |
| Material | aluminum |
More info
- Carabiner designed for use with groups:
- to fasten a harness (in combination with the CAPTIV positioning bar)
- to connect a trolley to a continuous lifeline - Secures the connection of the user:
- may be used with a CAPTIV positioning bar to favor loading of the carabiner along its major axis, to limit the risk of it flipping and to keep it integrated with the device
- PIN-LOCK locking system is unlocked only with a special tool, limiting the risk of the user opening the carabiner - Easy to use by the operator:
- Keylock system to avoid any involuntary snagging of the carabiner

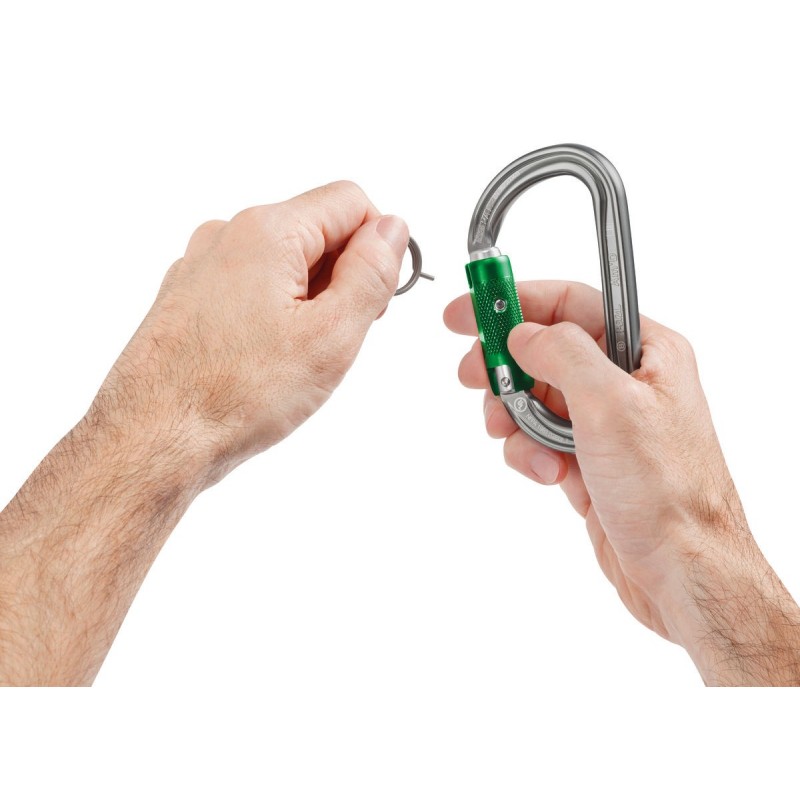

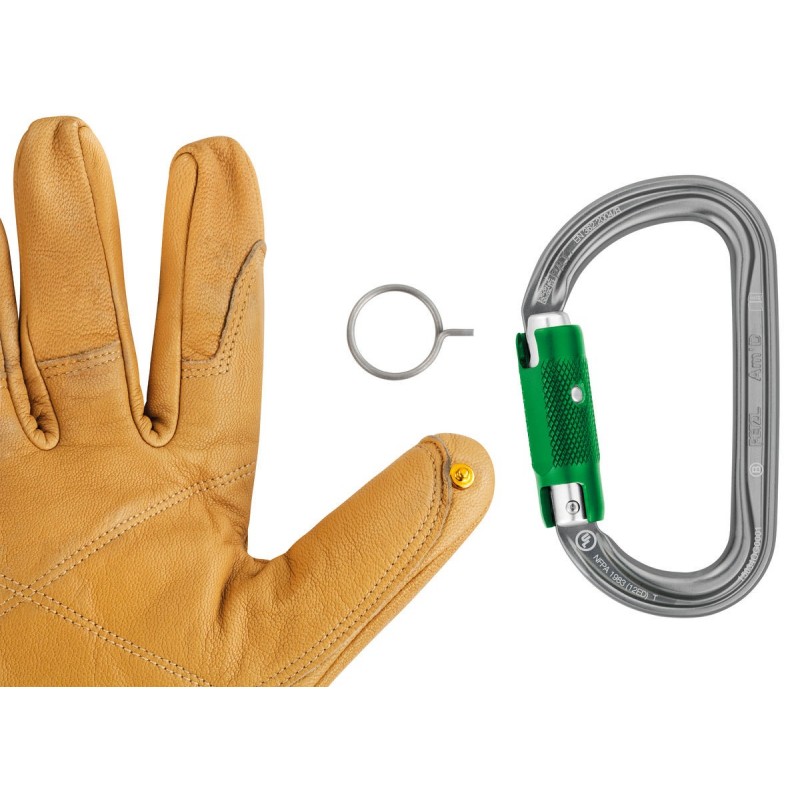

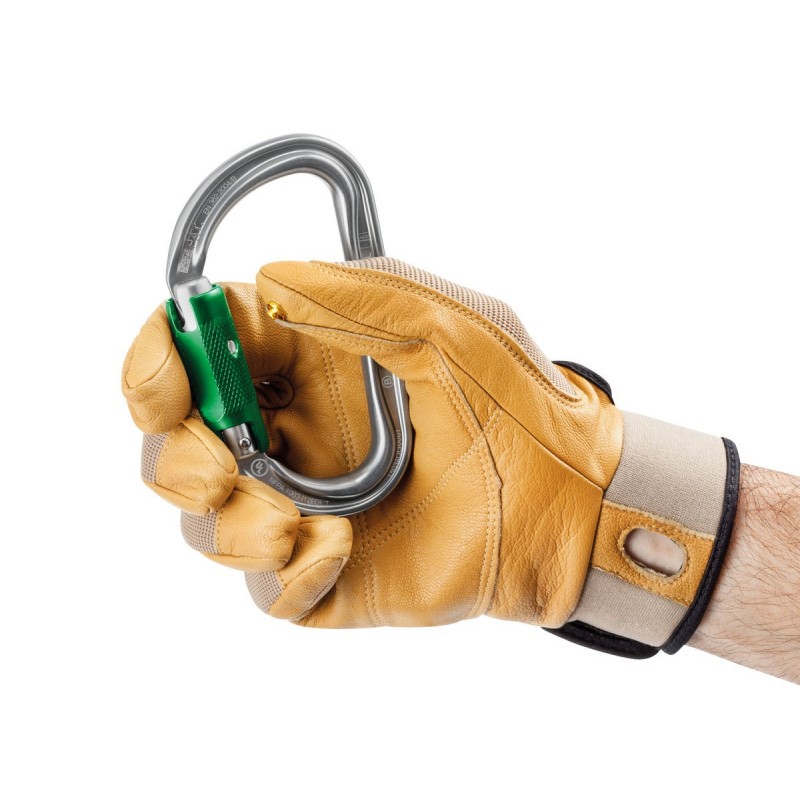

- two unlocking tools: for repeated manipulations, the unlocking pin can be installed directly on a glove; for immediate and occasional use, the unlocking ring can be kept on a carabiner on the harness
- H-profile protects markings from abrasion and ensures improved strength-to-weight ratio - Sold in ready to assemble packs of 10 with two unlocking tools or individually with the unlocking ring only
Product combinations
| Model | Weight | Color | Gate opening (g) | Locking system | Major axis strength | Minor axis strength | Open gate strength | Packing |
|---|---|---|---|---|---|---|---|---|
| M34A PL | 80 g |
|
25 mm | PIN-LOCK | 27 kN | 8 kN | 8 kN | 1 |
| M34AB PL | 800 g |
|
25 mm | PIN-LOCK | 27 kN | 8 kN | 8 kN | 10 |
