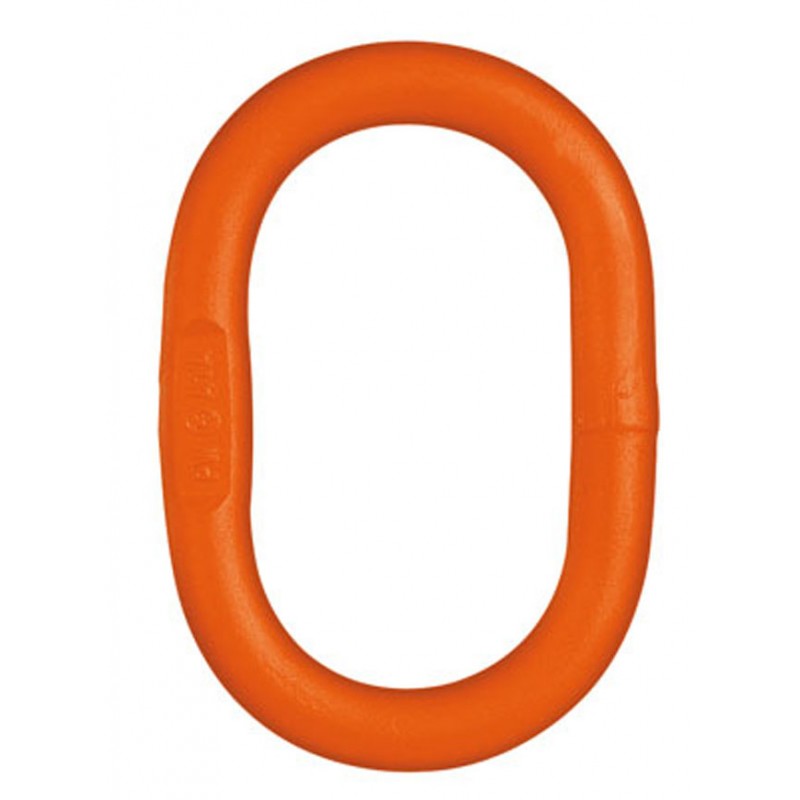

PEWAG AW Master link
Thanks to the flattened sections incorporated in the design, this master link opens up universal connection possibilities.
Price:
on demand
More info
Thanks to the flattened sections incorporated in the design, this master link opens up universal connection possibilities. It is ideally suited as an end or intermediate link to hook lashing chains into lashing points and has a 25% higher lashing capacity than grade 8.
The master link is manufactured according to EN1677-4, with the lashing capacity of G10.
Product combinations
| Model | Capacity WLL 0° - 45° (kg) |
|---|---|
| AW 10 | 1 400 |
| AW 13 | 2 300 |
| AW 16 | 3 500 |
| AW 18 | 5 000 |
| AW 22 | 7 600 |
| AW 26 | 10 000 |
| AW 32 | 14 000 |
| AW 36 | 25 100 |
| AW 45 | 30 800 |
| AW 50 | 40 000 |
| AW 56 | 64 000 |
| AW 72 | 85 000 |
